Requirements:


Useful links:

  • GO TO PAGE - Dedicated page for the use of the Ace Morph U30 rim.

How to attach the Morph Zero

  • 1: To the Quick Release

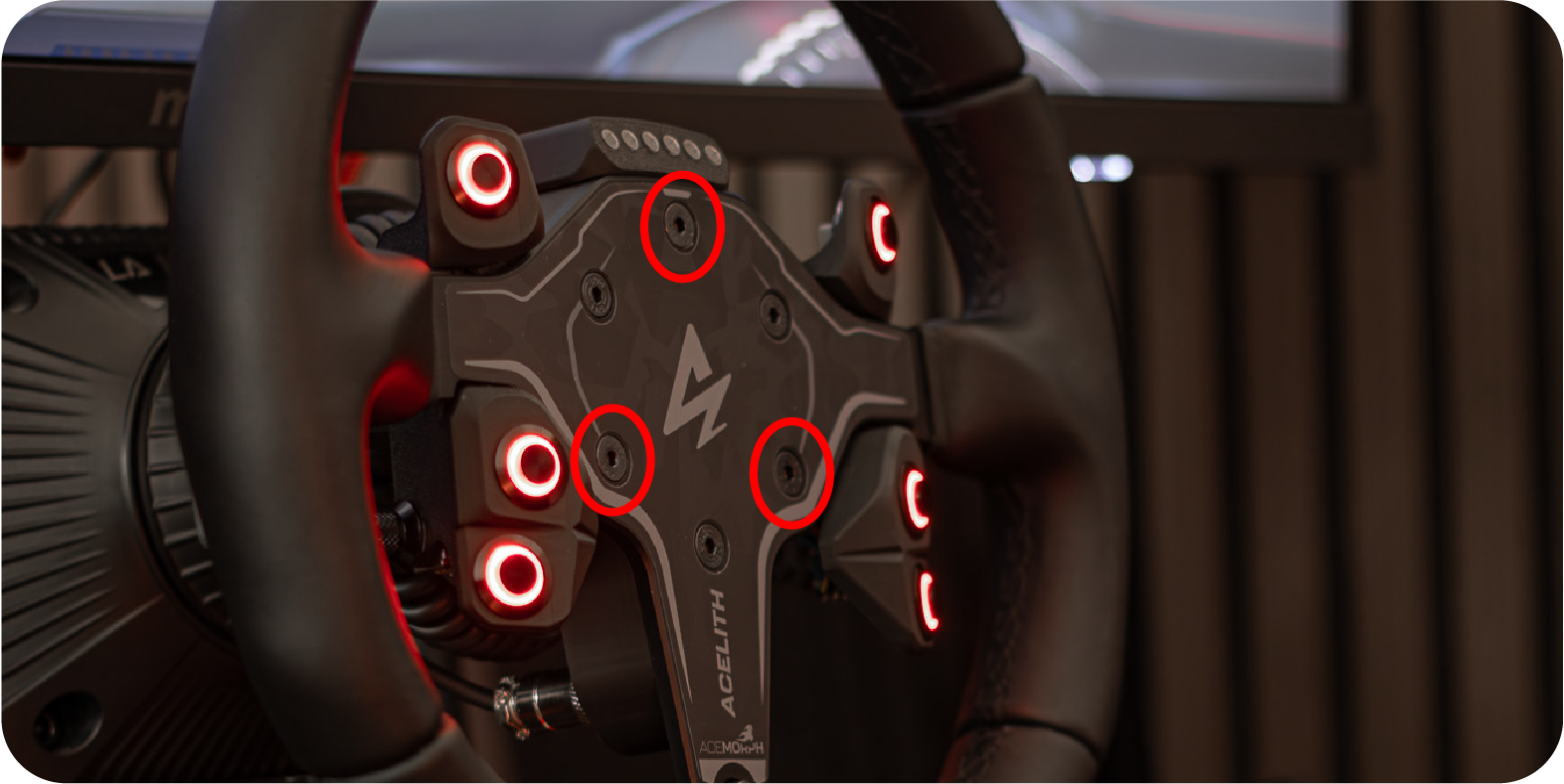

    Secure your quick release to the steering wheel using these 3 holes, with the 3 included M5 screws.

  • 2: Connection to PC

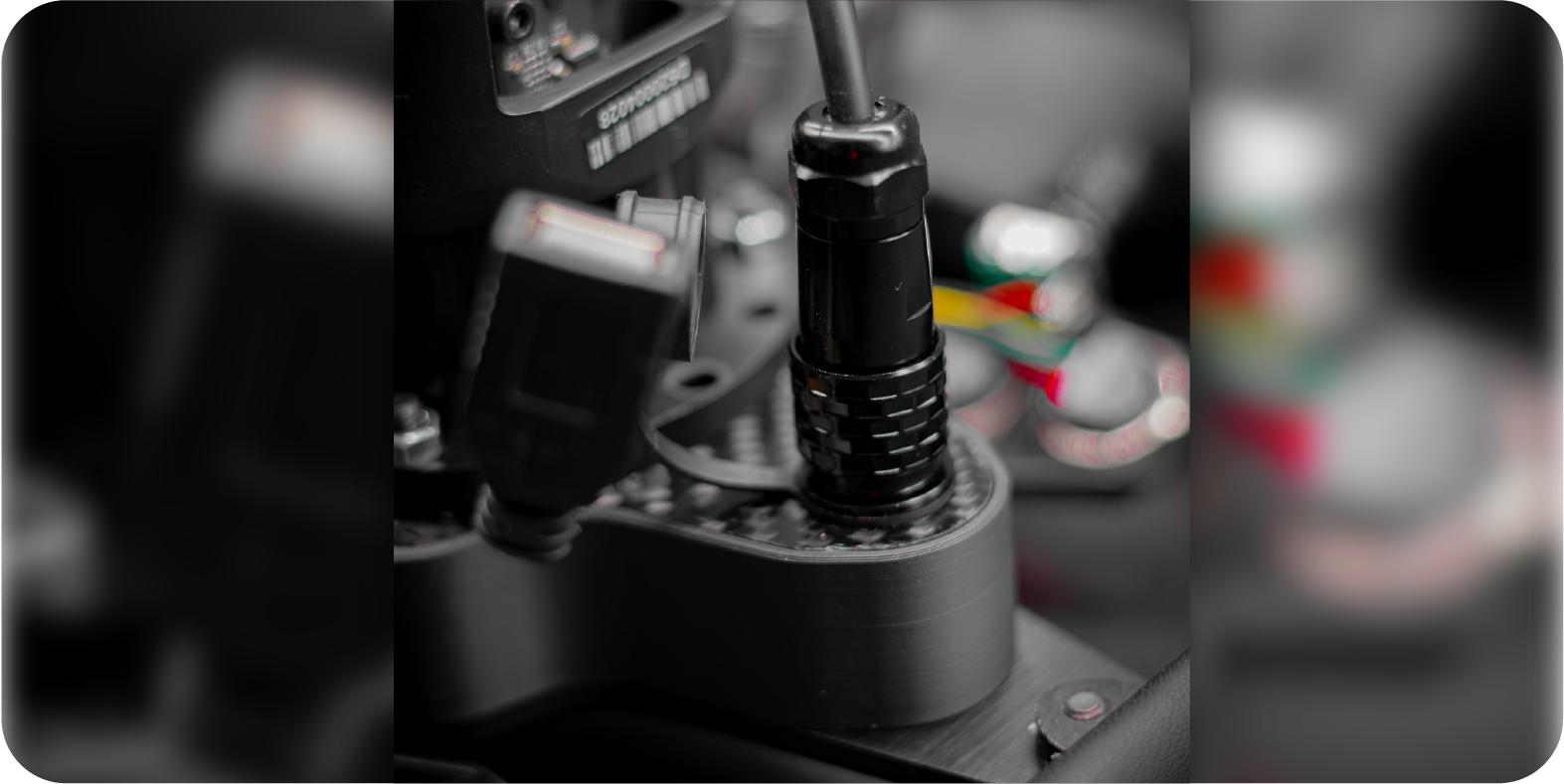

    Connect the coiled cable to the connector located on the back of the steering wheel, and the other end to a USB port on your PC.

    WARNING: make sure that, when turning the steering wheel, the cable has enough room to move freely without putting stress on the connector, to avoid damage. If space is limited, we recommend using a spacer like this: LINK

Software

  • Note

    The following procedure is only required if you have the Morph Zero with LEDs.
    If your wheel does not have LEDs, it is fully plug and play. You do not need to follow this tutorial.

  • 1 - Install\Update SimHub

    SimHub is required. It is free software, you can download it from here: DOWNLOAD.

    If you already have Simhub, you need to update it to the latest version anyway.

  • 2 - Synchronise SimHub

    On the main screen of SimHub click on your favourite simulator and synchronise the data if required. Remember that SimHub must always be active in the background.

  • 3 - Add the device to your list of devices

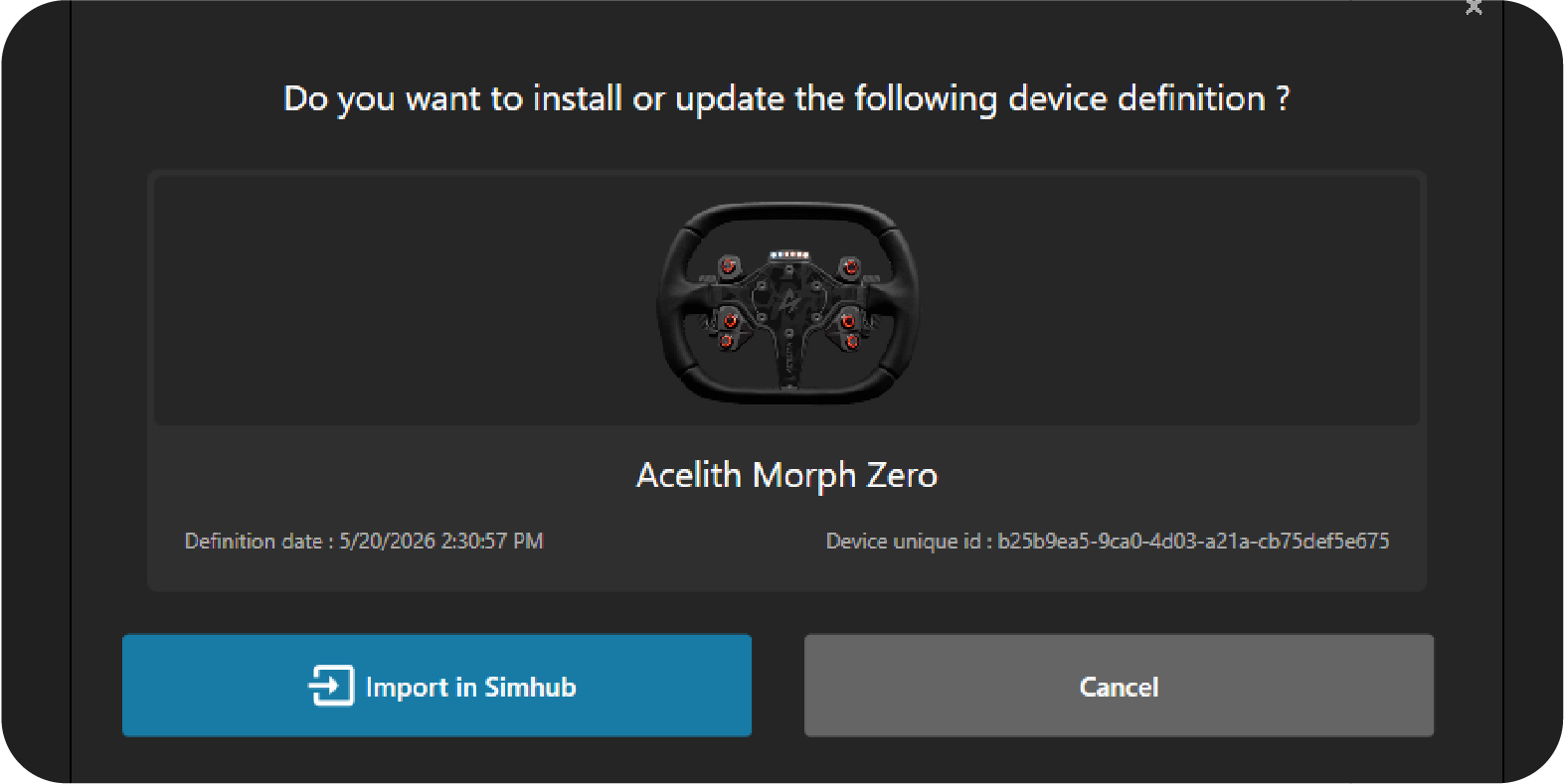

    Download this file, click on it (opening it with SimHub), and in the window that appears click on “Import into SimHub”.

    Done. From now on, you will see the Ace Morph Zero among your devices.
